S400-03FR

  • S400-01UN
  • S400-01GR
  • S400-01FR
  • S400-01AU
  • S400-01UK
  • S400-01SA
  • S400-02UN
  • S400-03UN
  • S400-03GR
  • S400-03FR
  • S400-03AU
  • S400-03UK
  • S400-03SA
  • S400-04UN
  • S400-04GR
  • S400-04FR
  • S400-04AU
  • S400-04UK
  • S400-04SA
  • Product Name:

    S400-03FR
  • Model No.:

    S400-03FR

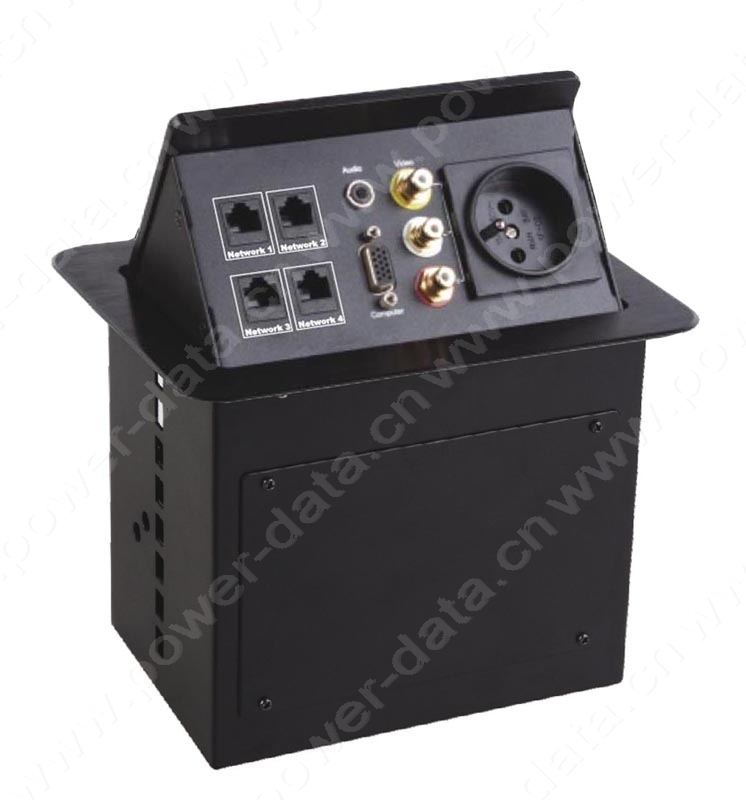

Product Description

Key Features:
–  Female to female adaptors without cables extension
–  Opens/closes by pressing on top panel
–  Durable pneumatic movement and mechanical latching mechanism
–  AC power outlets available for US, Europe, and other major world markets
–  CE compliant
–  Colour: Black, Silver
–  Bezel: Rectangle
–  Finish: Brushed Aluminum





Model: S400-03FR
P/N: Bezel Colour Finish
400.0321 Rectangle Black Brushed Aluminum
400.0322 Rectangle Black Matte
400.0323 Rectangle Silver Brushed Aluminum
400.0324 Rectangle Silver Matte





Specifications

AV & Data Electrical
(4) RJ-45 Cat5e F-F Panel: (1) NF C61-314 F, 250VAC, 60Hz, 16A
(1) Audio 3.5mm stereo F-F Bottom: (1) IEC C14 F, 110-240VAC, 50/60Hz, 10A
(1) RCA Video, F-F
(1) RCA Audio-L, F-F
(1) RCA Audio-R, F-F
(1) VGA 15pin F-F

Mechanical Accessories
Panel size: 200x150mm Mounting screws and brackets
Cut out: 189x139mm User Manual
Weight (approx.): 2.0kg
Shipping Weight(approx.): 3.0kg

Packing
1 unit / box (255x205x205mm)
4 units / carton (520x430x230mm)



Dimensions
