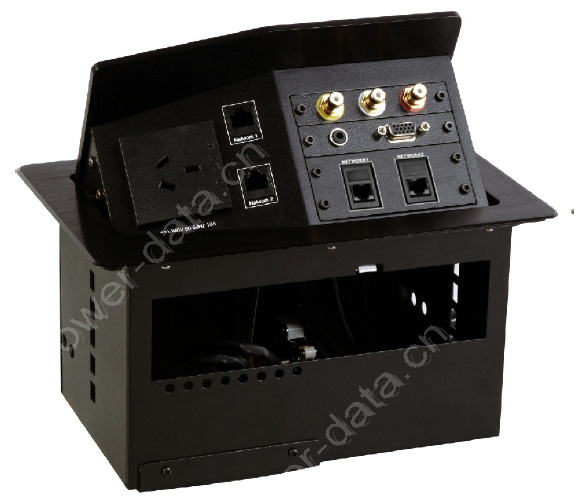

S500-01AU

  • S500-01UN
  • S500-01GR
  • S500-01FR
  • S500-01AU
  • S500-01UK
  • S500-01SA
  • Desktop Socket
  • Product Name:

    S500-01AU
  • Model No.:

    S500-01AU


Product Description

Key Features:
–  Assembled AV and Data plates
–  Opens/closes by pressing on top panel
–  Durable pneumatic movement and mechanical latching mechanism
–  AC power outlets available for US, Europe, and other major world markets
–  CE compliant





Model: S500-01AU
P/N: Bezel Colour Finish
500.0131 Rectangle Black Brushed Aluminum
500.0132 Rectangle Black Matte
500.0133 Rectangle Silver Brushed Aluminum
500.0134 Rectangle Silver Matte





Specifications
AV & Data Electrical
(2) RJ-45 Cat5e F-F AC Power: (1) NZS 3112 F-C14, 250VAC, 60Hz, 10A
(2) RJ-45 Cat5e F-M 1.8 meters
(1) 3.5mm stereo F-M 1.8 meters
(1) RCA Video, F-Extension Cable 1.8 meters
(1) RCA Audio-L, F-Extension Cable 1.8 meters
(1) RCA Audio-R, F-Extension Cable 1.8 meters
(1) VGA 15pin F-M 1.8 meters

Mechanical Accessories
Panel size: 256.5x163mm Mounting screws and brackets
Cut out: 245.5x152mm User Manual
Weight (approx.): 3.0kg
Shipping Weight(approx.):  3.5kg

Packing
1 unit / box (230x15.5x220mm)
4 units / carton (470x320x450mm)



Optional AV Data Plates





Dimensions
