S100-06UN

  • S100-01US
  • S100-02US
  • S100-03US
  • S100-04UN
  • S100-04GR
  • S100-04FR
  • S100-04UK
  • S100-04AU
  • S100-05UN
  • S100-06UN
  • Product Name:

    S100-06UN
  • Model No.:

    S100-06UN


Product Description

Key Features:

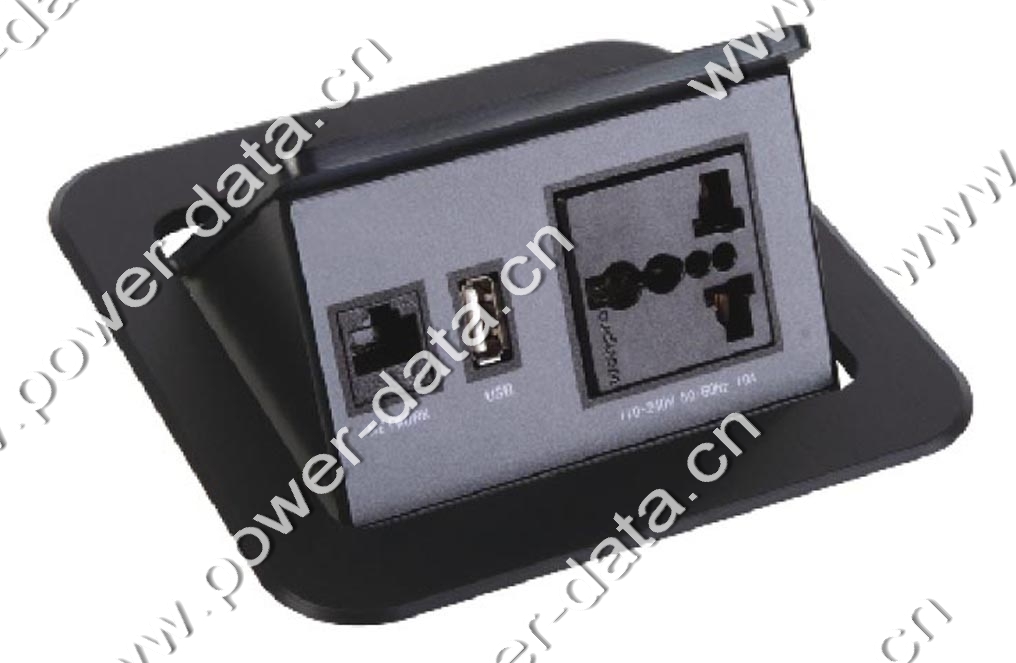

–  Mounts into tabletop, provides single input plate
–  Opens/closes by pressing on top panel
–  Durable pneumatic movement and mechanical latching mechanism
–  AC power outlets available for US, Europe, and other major world markets
–  CE compliant

–  Colour: Black, Silver, by customize
–  Bezel: Square, Round
–  Finish: Brushed Aluminum, Matte





Model: S100-06UN
P/N: Bezel Colour Finish
100.0601 Square Black Brushed Aluminum
100.0602 Square Black Matte
100.0603 Square Silver Brushed Aluminum
100.0604 Square Silver Matte
100.0605 Round Black Brushed Aluminum
100.0606 Round Black Matte
100.0607 Round Silver Brushed Aluminum
100.0608 Round Silver Matte



Specifications

AV & Data Electrical
Network: (1) RJ-45 F-M AC Power: (1) Universal F-M, 220-250VAC, 60Hz, 10A
USB 2.0: (1) AF-AM

Mechanical Accessories

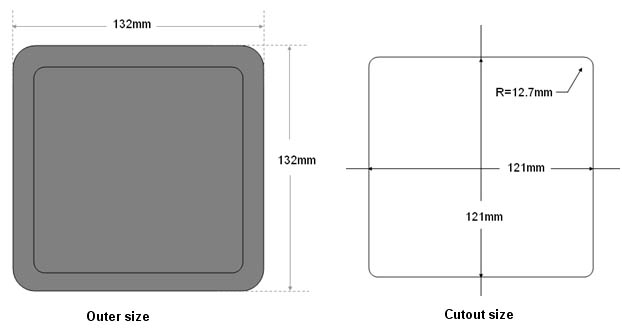

Panel size: 132x132mm Mounting screws and brackets
Cut out: 121x121mm User Manual
Weight (approx.): 1.2kg
Shipping Weight(approx.): 2.0kg

Packing
1pc per box
box size: 210x210x210mm
8pcs in a carton
carton size: 450x450x450mm



Dimensions
